如何用 Python 识别图片文字（基于百度 OCR API）

做项目的时候需要用到文字识别功能，以下是对一些方案的实践，最后选择了百度文字识别 API，其他的要么是云服务器内存太小，要么是 CPU 太低，没法用。还是直接找最简单快捷的办法。

百度文字识别 api

安装

pip install baidu-aip

代码

from aip import AipOcr
from backend import secrets


class BaiduOCR:
    def __init__(self):
        self.client = AipOcr(secrets.APP_ID, secrets.API_KEY, secrets.SECRET_KEY)
        self.options = {"language_type": "CHN_ENG", "detect_direction": "true", "detect_language": "true",
                        "probability": "true"}

    @staticmethod
    def get_file_content(file_path):
        """
        读取图片
        """
        with open(file_path, 'rb') as fp:
            return fp.read()

    def basic_parse(self, fp):
        image = self.get_file_content(fp)
        ret = self.client.basicGeneral(image)
        return ret

    def main(self, fp):
        ret_data = self.basic_parse(fp)
        return ret_data

if __name__ == '__main__':
    fp = '../../_data/lipsticks/mp_test.png' # 测试识别文件路径
    bd_ocr = BaiduOCR()
    ret_data = bd_ocr.main(fp)
    print(ret_data)

运行结果

{'log_id': 2510103433725039650, 'words_result_num': 2, 'words_result': [{'words': '·微信搜一搜'}, {'words': 'Q三傻的编程生活'}]}

注意：估计是原图带有二维码，所以导致识别超时，返回requests.exceptions.ConnectionError: ('Connection aborted.', timeout('The write operation timed out'))；而我们手动给二维码打码之后，才可以正常识别。

测试图片

再来一遍

调用远程 url 图片：

def basic_parse_url(self, url):
    ret = self.client.basicGeneralUrl(url, self.options)
    return ret

if __name__ == '__main__':

    bd_ocr = BaiduOCR()
    url = 'http://img4.xiji.com/images/19/01/6efcdf3646ab405e003d3feefa2d463ac20b9d3a.jpg'
    url_ret_data = bd_ocr.basic_parse_url(url)
    print(url_ret_data)

返回结果

{'log_id': 8559002589980060578, 'direction': 0, 'words_result_num': 4, 'words_result': [{'words': '迪奥999排滋润', 'probability': {'variance': 0.016349, 'average': 0.931602, 'min': 0.602039}}, {'words': '迪奥#99滋润(经典正红色)', 'probability': {'variance': 7.6e-05, 'average': 0.99548, 'min': 0.969314}}, {'words': '颜色最纯正的一款正红色,不挑肤色,喜庆特别显气质。嘴唇状态不好的小仙女', 'probability': {'variance': 0.00176, 'average': 0.988948, 'min': 0.788893}}, {'words': '要选这款,能让唇妆看起来更美', 'probability': {'variance': 5.8e-05, 'average': 0.996976, 'min': 0.97018}}], 'language': -1}

pytesseract

装包

pipenv install pytesseract
pipenv install tesseract
yum install tesseract

下载语言扩展

tessdoc | Tesseract documentation

编写代码

from PIL import Image
import pytesseract
from backend import settings

def get_content_from_image(image_fp):
    image = Image.open(image_fp)
    content = pytesseract.image_to_string(image, lang='chi_sim')
    return content


if __name__ == '__main__':
    fp = settings.TEST_IMAGE_FP
    ret = get_content_from_image(fp)
    print(ret)

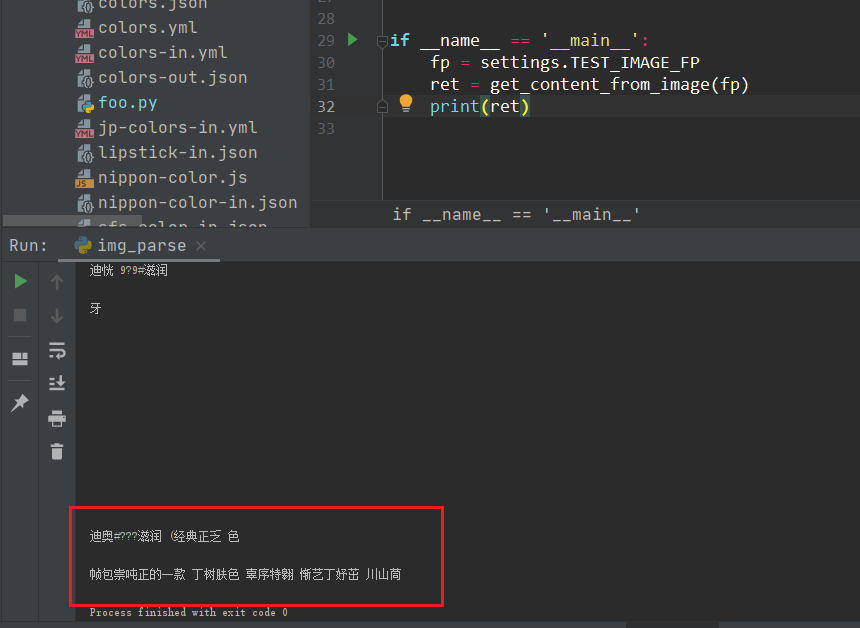

查看运行结果

尼玛，坑爹呢！

chineseocr_lite

下载

git clone -b master https://github.com/ouyanghuiyu/chineseocr_lite.git

编译安装

cd psenet/pse

rm -rf pse.so
make
make: python3-config: Command not found
make: python3-config: Command not found
g++ -o pse.so -I include  -std=c++11 -O3   pse.cpp --shared -fPIC
make: g++: Command not found
make: *** [pse.so] Error 127

安装 g++

yum -y install gcc+ gcc-c++
yum install python3-devel -y

回到主目录

cd ../..
pwd
/home/imoyao/chineseocr_lite

安装依赖

如果国内下载依赖太慢可以配置镜像，参考此处：

换阿里源

换清华源

pip install -r requirements.txt
pip install torch
pip install torchvision

运行服务

(chineseocr_lite) bash-4.2# python app.py
make: Entering directory `/home/imoyao/chineseocr_lite/psenet/pse'
make: `pse.so' is up to date.
make: Leaving directory `/home/imoyao/chineseocr_lite/psenet/pse'
device: cpu
load model
device: cpu
load model
device: cpu
load model
device: cpu
load model
Traceback (most recent call last):
  File "/root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/utils.py", line 526, in take
    yield next(seq)
StopIteration

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
  File "app.py", line 125, in <module>
    app = web.application(urls, globals())
  File "/root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/application.py", line 62, in __init__
    self.init_mapping(mapping)
  File "/root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/application.py", line 130, in init_mapping
    self.mapping = list(utils.group(mapping, 2))
  File "/root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/utils.py", line 531, in group
    x = list(take(seq, size))
RuntimeError: generator raised StopIteration
(chineseocr_lite) bash-4.2# cp /root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/utils.py /root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/utils.py.bak

修改如下：

def take(seq, n):
   for i in range(n):
       try:
           yield next(seq)
       except StopIteration:
           return

启动服务

python app.py

访问应用：

http://{{YOUR_DEV_IP}}:8080/ocr # 注意后面的ocr路由而不是首页！

报错

  File "/root/.local/share/virtualenvs/chineseocr_lite-GxZWTh-N/lib/python3.7/site-packages/web/httpserver.py", line 255, in __iter__
    path = self.translate_path(self.path)
  File "/usr/local/lib/python3.7/http/server.py", line 820, in translate_path
    path = self.directory
AttributeError: 'StaticApp' object has no attribute 'directory'

添加代码

class StaticApp(SimpleHTTPRequestHandler):
    """WSGI application for serving static files."""
    def __init__(self, environ, start_response):
        self.headers = []
        self.environ = environ
        self.start_response = start_response
        self.directory = os.getcwd()    # 此行

参见此处和此处

安装 leptonica

tesseract_ocr.cpp:633:34: fatal error: leptonica/allheaders.h: No such file or directory
     #include "leptonica/allheaders.h"

安装

wget http://www.leptonica.org/source/leptonica-1.79.0.tar.gz
tar -xzvf leptonica-1.79.0.tar.gz
cd leptonica-1.79.0
./configure --prefix=/usr/local/leptonica
make && make install

验证安装

tesseract -v
tesseract 3.04.00
 leptonica-1.72
  libgif 4.1.6(?) : libjpeg 6b (libjpeg-turbo 1.2.90) : libpng 1.5.13 : libtiff 4.0.3 : zlib 1.2.7 : libwebp 0.3.0
