ceph-calamari 安装记录

过时提示 @Deprecated

基于本文提到的原因，不再对该项目进行跟进、维护和继续探索。该文不再更新。

克隆源码

mkdir /tmp/calamari-repo
cd /tmp/calamari-repo
git clone https://github.com/ceph/calamari.git
git clone https://github.com/ceph/Diamond.git
git clone https://github.com/ceph/calamari-clients.git

构建 calamari server 的 rpm 包

生成 diamond 安装包

cd ../Diamond
git checkout origin/calamari
yum install rpm-build -y
make rpm

将 diamond-.noarch.rpm 复制到所有的 ceph 服务器，执行安装：

cd dist/
# 方案1
yum install python-configobj
rpm -ivh diamond-<version>.noarch.rpm
# 方案2
yum localinstall diamond-3.4.67-0.noarch.rpm

安装 salt-minion

在所有的 ceph 服务器上安装 salt-minion

yum install salt-minion

创建/etc/salt/minion.d/calamari.conf，内容为：
master: {SERVER NODE HOSTNAME}
{SERVER NODE HOSTNAME}对应 calamari 服务器的域名。
启动 salt-minion 服务：

service salt-minion restart

问题记录

Ceph servers are connected to Calamari, but no Ceph cluster has been created yet

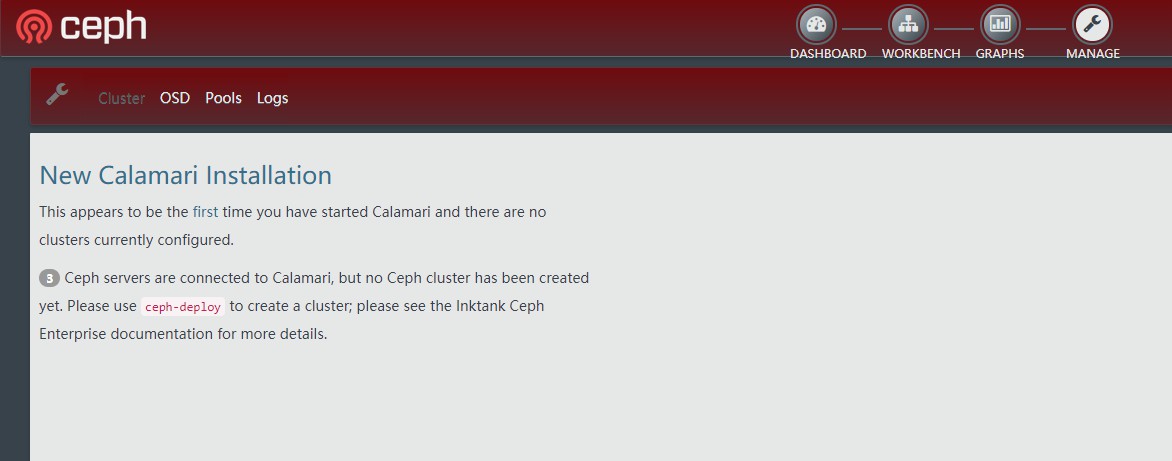

安装完成之后，首页出现如下提示：

This appears to be the first time you have started Calamari and there are no clusters currently configured.

*some* Ceph servers are connected to Calamari, but no Ceph cluster has been
created yet. Please use ceph-deploy to create a cluster; please see the
Inktank Ceph Enterprise documentation for more details.

具体见此处

解决办法

执行salt '*' ceph.get_heartbeats，返回如下:

node2:
    The minion function caused an exception: Traceback (most recent call last):
      File "/usr/lib/python2.7/site-packages/salt/minion.py", line 1200, in _thread_return
        return_data = func(*args, **kwargs)
      File "/var/cache/salt/minion/extmods/modules/ceph.py", line 534, in get_heartbeats
        service_data = service_status(filename)
      File "/var/cache/salt/minion/extmods/modules/ceph.py", line 593, in service_status
        fsid = json.loads(admin_socket(socket_path, ['status'], 'json'))['cluster_fsid']
    KeyError: 'cluster_fsid'
…… # It is same.
    The minion function caused an exception: Traceback (most recent call last):
      File "/usr/lib/python2.7/site-packages/salt/minion.py", line 1200, in _thread_return
        return_data = func(*args, **kwargs)
      File "/var/cache/salt/minion/extmods/modules/ceph.py", line 534, in get_heartbeats
        service_data = service_status(filename)
      File "/var/cache/salt/minion/extmods/modules/ceph.py", line 593, in service_status
        fsid = json.loads(admin_socket(socket_path, ['status'], 'json'))['cluster_fsid']
    KeyError: 'cluster_fsid'

修改代码AdminSocketError 为 (AdminSocketError,KeyError)：

try:
    fsid = json.loads(admin_socket(socket_path, ['status'], 'json'))['cluster_fsid']
except (AdminSocketError,KeyError):  # 此处也可以直接使用 Exception
    # older osd/mds daemons don't support 'status'; try our best
   pass             # 此处代码不变

注意: 在admin节点，代码可能在 /opt/calamari/salt/salt/_modules/ceph.py 而在其他节点，代码可能在/var/cache/salt/minion/extmods/modules/ceph.py。

在admin节点执行salt "*" saltutil.sync_all或者systemctl restart salt-minion，返回:

node3:
    ----------
    beacons:
    grains:
    modules:
    output:
    renderers:
    returners:
    sdb:
    states:
    utils:
……
node2:
    ----------
    beacons:
    grains:
    modules:
    output:
    renderers:
    returners:
    sdb:
    states:
    utils:

然后，在admin节点执行salt '*' ceph.get_heartbeats，返回:

node2:
    |_
      ----------
      boot_time:
          1573005001
      ceph_version:
          2:13.2.6-0.el7
      services:
          ----------
          ceph-mgr.node2:
              ----------
              cluster:
                  ceph
              fsid:
                  47071b01-394e-4a62-bb2d-cfe3c19637f7
              id:
                  node2
              status:
                  None
              type:
                  mgr
              version:
                  13.2.6
          ceph-osd.0:
              ----------
              cluster:
                  ceph
              fsid:
                  47071b01-394e-4a62-bb2d-cfe3c19637f7
              id:
                  0
              status:
                  None
              type:
                  osd
              version:
                  13.2.6
    |_
      ----------
……

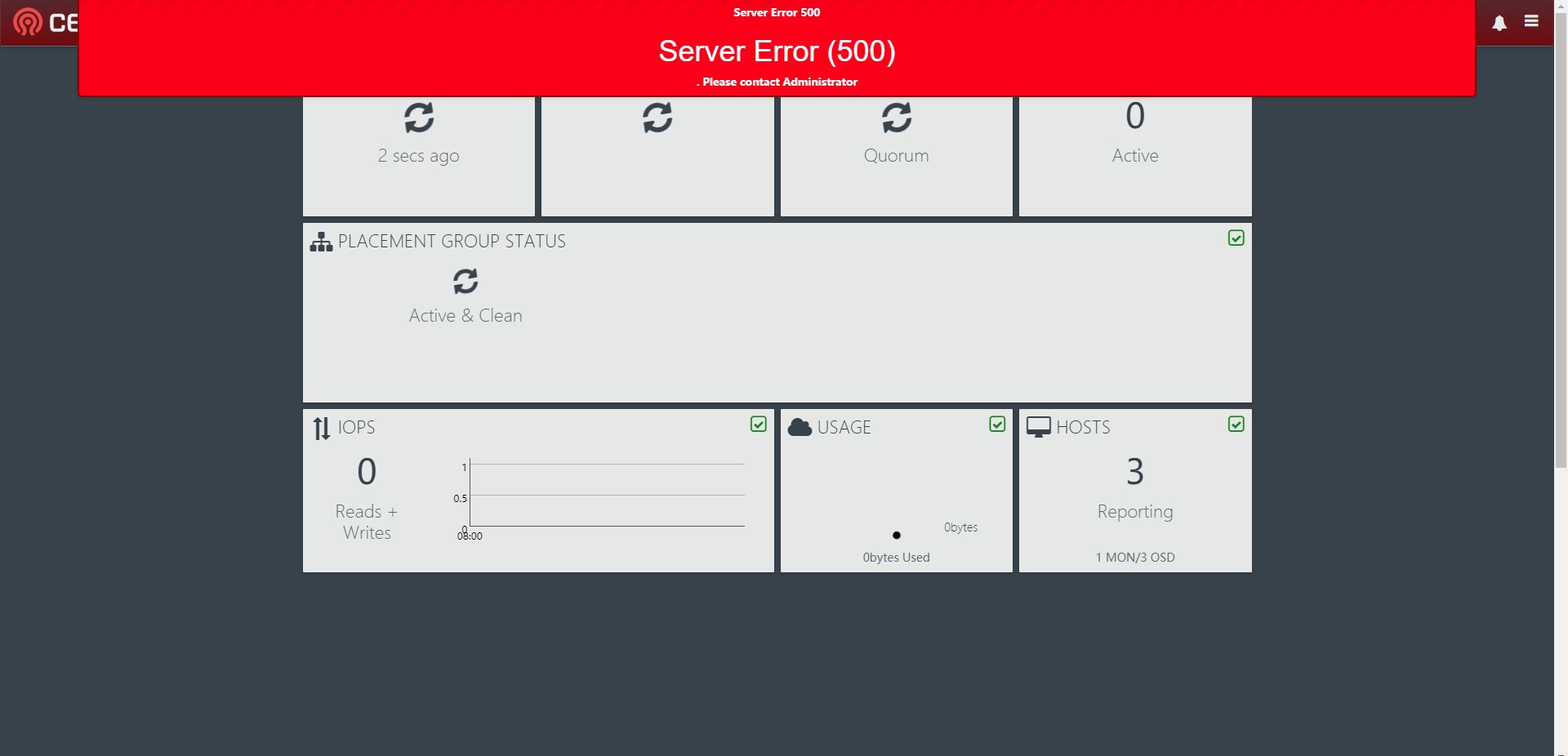

访问页面，获取到如此显示

500 错误，请联系管理员
此处有关于该问题的描述。

查看 calamari 日志

tailf /var/log/calamari/calamari.log

获取到以下错误：

2019-11-05 21:02:19,605 - metric_access - django.request No graphite data for ceph.cluster.47071b01-394e-4a62-bb2d-cfe3c19637f7.df.total_used_bytes
2019-11-05 21:02:19,606 - metric_access - django.request No graphite data for ceph.cluster.47071b01-394e-4a62-bb2d-cfe3c19637f7.df.total_used
2019-11-05 21:02:19,606 - metric_access - django.request No graphite data for ceph.cluster.47071b01-394e-4a62-bb2d-cfe3c19637f7.df.total_space
2019-11-05 21:02:19,607 - metric_access - django.request No graphite data for ceph.cluster.47071b01-394e-4a62-bb2d-cfe3c19637f7.df.total_avail
2019-11-05 21:02:19,608 - ERROR - django.request Internal Server Error: /api/v1/cluster/47071b01-394e-4a62-bb2d-cfe3c19637f7/space
Traceback (most recent call last):
  File "/opt/calamari/venv/lib/python2.7/site-packages/django/core/handlers/base.py", line 115, in get_response
    response = callback(request, *callback_args, **callback_kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/viewsets.py", line 78, in view
    return self.dispatch(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/rpc_view.py", line 94, in dispatch
    self.client.close()
  File "/opt/calamari/venv/lib/python2.7/site-packages/zerorpc/core.py", line 293, in close
    SocketBase.close(self)
  File "/opt/calamari/venv/lib/python2.7/site-packages/zerorpc/socket.py", line 37, in close
    self._events.close()
  File "/opt/calamari/venv/lib/python2.7/site-packages/zerorpc/events.py", line 198, in close
    self._send.close()
  File "/opt/calamari/venv/lib/python2.7/site-packages/zerorpc/events.py", line 50, in close
    self._send_task.kill()
  File "/opt/calamari/venv/lib/python2.7/site-packages/gevent/greenlet.py", line 235, in kill
    waiter.get()
  File "/opt/calamari/venv/lib/python2.7/site-packages/gevent/hub.py", line 575, in get
    return self.hub.switch()
  File "/opt/calamari/venv/lib/python2.7/site-packages/gevent/hub.py", line 338, in switch
    return greenlet.switch(self)
LostRemote: Lost remote after 10s heartbeat

------

2019-11-05 23:59:43,586 - ERROR - django.request Internal Server Error: /api/v1/cluster/47071b01-394e-4a62-bb2d-cfe3c19637f7/health_counters
Traceback (most recent call last):
  File "/opt/calamari/venv/lib/python2.7/site-packages/django/core/handlers/base.py", line 115, in get_response
    response = callback(request, *callback_args, **callback_kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/viewsets.py", line 78, in view
    return self.dispatch(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/rpc_view.py", line 91, in dispatch
    return super(RPCViewSet, self).dispatch(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/django/views/decorators/csrf.py", line 77, in wrapped_view
    return view_func(*args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/views.py", line 399, in dispatch
    response = self.handle_exception(exc)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/rpc_view.py", line 108, in handle_exception
    return super(RPCViewSet, self).handle_exception(exc)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/views.py", line 396, in dispatch
    response = handler(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/v1.py", line 315, in get
    counters = self.generate(osd_data, mds_data, mon_status, pg_summary)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/v1.py", line 167, in generate
    'mds': cls._calculate_mds_counters(mds_map),
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/v1.py", line 295, in _calculate_mds_counters
    up = len(mds_map['up'])
TypeError: 'NoneType' object has no attribute '__getitem__'

--------

2019-11-06 00:00:53,567 - ERROR - django.request Internal Server Error: /api/v1/cluster/47071b01-394e-4a62-bb2d-cfe3c19637f7/osd
Traceback (most recent call last):
  File "/opt/calamari/venv/lib/python2.7/site-packages/django/core/handlers/base.py", line 115, in get_response
    response = callback(request, *callback_args, **callback_kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/viewsets.py", line 78, in view
    return self.dispatch(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/rpc_view.py", line 91, in dispatch
    return super(RPCViewSet, self).dispatch(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/django/views/decorators/csrf.py", line 77, in wrapped_view
    return view_func(*args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/views.py", line 399, in dispatch
    response = self.handle_exception(exc)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/rpc_view.py", line 108, in handle_exception
    return super(RPCViewSet, self).handle_exception(exc)
  File "/opt/calamari/venv/lib/python2.7/site-packages/rest_framework/views.py", line 396, in dispatch
    response = handler(request, *args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/v1.py", line 417, in get
    osds, osds_by_pg_state = self.generate(pg_summary, osd_map, server_info, servers)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_rest_api-0.1-py2.7.egg/calamari_rest/views/v1.py", line 365, in generate
    for pool_id, osds in osd_map.osds_by_pool.items():
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_common-0.1-py2.7.egg/calamari_common/util.py", line 8, in wrapper
    rv = function(*args)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_common-0.1-py2.7.egg/calamari_common/types.py", line 206, in osds_by_pool
    for rule in [r for r in self.data['crush']['rules'] if r['ruleset'] == pool['crush_ruleset']]:
KeyError: 'crush_ruleset'
2019-11-06 00:00:54,566 - metric_access - django.request No graphite data for ceph.cluster.47071b01-394e-4a62-bb2d-cfe3c19637f7.pool.1.num_objects

查看 cthulhu 日志

tailf /var/log/calamari/cthulhu.log

返回如下：

2019-11-05 22:05:31,371 - WARNING - cthulhu Ignoring event salt/job/20191105220531366943/ret/node1
2019-11-05 22:05:31,371 - WARNING - cthulhu.request_collection on_completion: unknown jid 20191105220531366943, return: None
2019-11-05 22:05:38,283 - WARNING - cthulhu.request_collection on_completion: unknown jid 20191105220538277178, return: None
2019-11-05 22:05:38,283 - WARNING - cthulhu Ignoring event salt/job/20191105220538277178/ret/node3
2019-11-05 22:05:38,383 - WARNING - cthulhu Ignoring event salt/job/20191105220538379133/ret/node2
2019-11-05 22:05:38,384 - WARNING - cthulhu.request_collection on_completion: unknown jid 20191105220538379133, return: None
2019-11-05 22:05:41,384 - WARNING - cthulhu Abandoning fetch for mds_map started at 2019-11-06 03:05:31.344465+00:00
2019-11-05 22:05:41,385 - ERROR - cthulhu Exception handling message with tag ceph/cluster/47071b01-394e-4a62-bb2d-cfe3c19637f7
Traceback (most recent call last):
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_cthulhu-0.1-py2.7.egg/cthulhu/manager/cluster_monitor.py", line 244, in _run
    self.on_heartbeat(data['id'], data['data'])
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_cthulhu-0.1-py2.7.egg/cthulhu/gevent_util.py", line 35, in wrapped
    return func(*args, **kwargs)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_cthulhu-0.1-py2.7.egg/cthulhu/manager/cluster_monitor.py", line 346, in on_heartbeat
    cluster_data['versions'][sync_type.str])
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_cthulhu-0.1-py2.7.egg/cthulhu/manager/cluster_monitor.py", line 99, in on_version
    self.fetch(reported_by, sync_type)
  File "/opt/calamari/venv/lib/python2.7/site-packages/calamari_cthulhu-0.1-py2.7.egg/cthulhu/manager/cluster_monitor.py", line 109, in fetch
    client = LocalClient(config.get('cthulhu', 'salt_config_path'))
  File "/usr/lib/python2.7/site-packages/salt/client/__init__.py", line 126, in __init__
    self.opts = salt.config.client_config(c_path)
  File "/usr/lib/python2.7/site-packages/salt/config.py", line 2203, in client_config
  File "/usr/lib/python2.7/site-packages/salt/utils/xdg.py", line 13, in xdg_config_dir
  File "/opt/calamari/venv/lib64/python2.7/posixpath.py", line 269, in expanduser
KeyError: 'getpwuid(): uid not found: 0'
